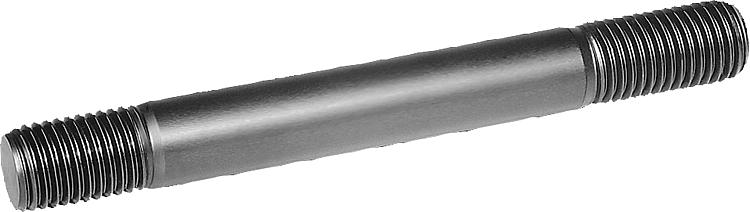

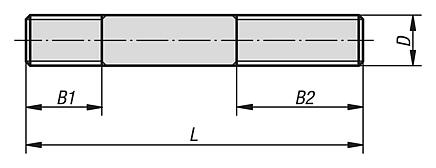

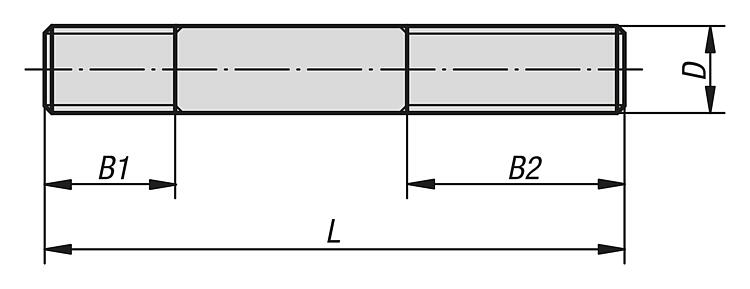

Item description/product images |
|
|
DescriptionMaterial:Carbon steel 1.1181.Version:Tempered to 8.8 and black oxidised.Note:Permissible loading see Technical Information.
Thread end with oval point is permissible.On request:Stainless steel. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
