Cam-action indexing plungers with thread lock

go back

Products
- Operating parts | standard elements
  - Spring plungers, indexing plungers, ball lock pins
    - Cam action indexing plunger
      - Cam-action indexing plungers with thread lock

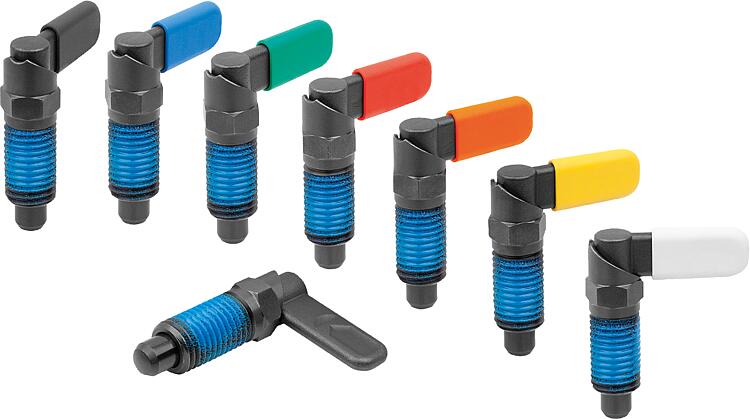

Item description/product images

Show/filter all items

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Threaded sleeve and indexing pin steel.
Spring 1.4310.
Grip cap thermoplastic PA.
Thread lock blue polyamideVersion:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light grey RAL 7035.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.Accessory:Mounting bracket K0638.

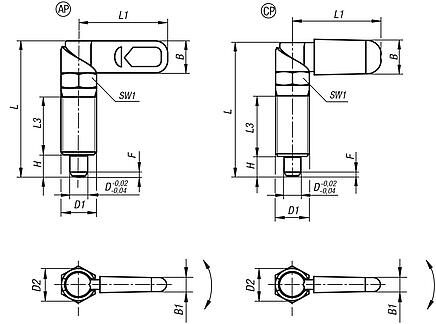

Positioning bushes K1290.Drawing reference:

Form AP: without grip cap or nut.
Form CP: with grip cap, without nut.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2114 Cam-action indexing plungers with thread lock

252 kB

Drawings (total overview)

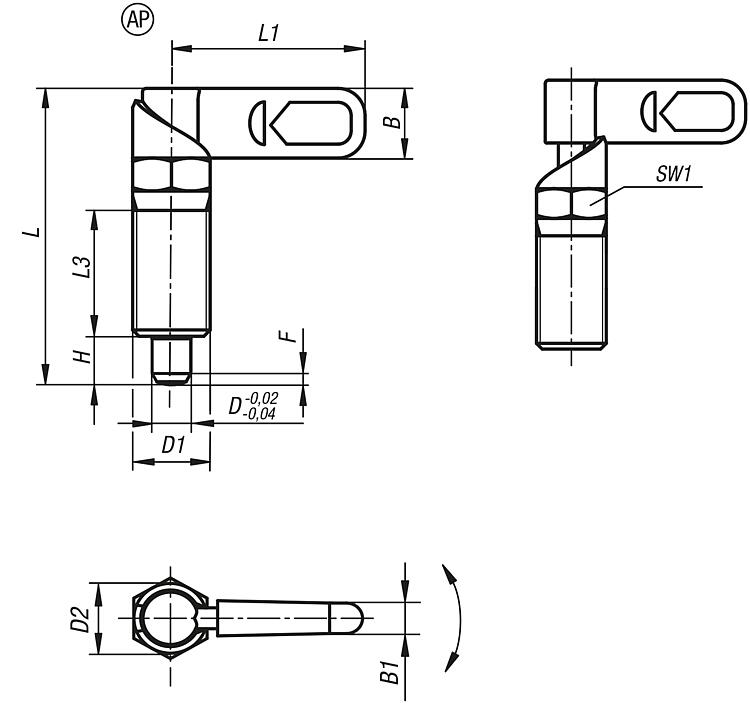

Cam-action indexing plungers with thread lock, without grip cap or nut, Form AP

More information

Drawings

Cam-action indexing plungers with thread lock, without grip cap or nut, Form AP

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K2114.940410	AP	without plastic cap, without locknut	4	M10	10	38,5	25	15	9	3	6	10	1	8	14	on request
K2114.940510	AP	without plastic cap, without locknut	5	M10	10	38,5	25	15	9	3	6	10	1,3	8	14	on request
K2114.940610	AP	without plastic cap, without locknut	6	M10	10	38,5	25	15	9	3	6	10	1,8	8	14	on request
K2114.9404101	AP	without plastic cap, without locknut	4	M10x1	10	38,5	25	15	9	3	6	10	1	8	14	on request
K2114.9405101	AP	without plastic cap, without locknut	5	M10x1	10	38,5	25	15	9	3	6	10	1,3	8	14	on request
K2114.9406101	AP	without plastic cap, without locknut	6	M10x1	10	38,5	25	15	9	3	6	10	1,8	8	14	on request
K2114.940512	AP	without plastic cap, without locknut	5	M12	12	47,4	30	19	10,8	3,6	8	12	1,3	5	15	on request
K2114.940612	AP	without plastic cap, without locknut	6	M12	12	47,4	30	19	10,8	3,6	8	12	1,8	5	15	on request
K2114.940812	AP	without plastic cap, without locknut	8	M12	12	47,4	30	19	10,8	3,6	8	12	2,3	5	15	on request
K2114.9405121	AP	without plastic cap, without locknut	5	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	1,3	5	15	on request
K2114.9406121	AP	without plastic cap, without locknut	6	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	1,8	5	15	on request
K2114.9408121	AP	without plastic cap, without locknut	8	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	2,3	5	15	on request
K2114.940616	AP	without plastic cap, without locknut	6	M16	16	61,2	40	26	14,4	4,8	10	16	1,8	15	35	on request
K2114.940816	AP	without plastic cap, without locknut	8	M16	16	61,2	40	26	14,4	4,8	10	16	2,3	15	35	on request
K2114.941016	AP	without plastic cap, without locknut	10	M16	16	61,2	40	26	14,4	4,8	10	16	2,8	15	35	on request
K2114.9406161	AP	without plastic cap, without locknut	6	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	1,8	15	35	on request
K2114.9408161	AP	without plastic cap, without locknut	8	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	2,3	15	35	on request
K2114.9410161	AP	without plastic cap, without locknut	10	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	2,8	15	35	on request
K2114.940820	AP	without plastic cap, without locknut	8	M20	20	71	50	30	18	6	12	20	2,3	20	60	on request
K2114.941020	AP	without plastic cap, without locknut	10	M20	20	71	50	30	18	6	12	20	2,8	20	60	on request
K2114.941220	AP	without plastic cap, without locknut	12	M20	20	71	50	30	18	6	12	20	3	20	60	on request
K2114.9408201	AP	without plastic cap, without locknut	8	M20x1,5	20	71	50	30	18	6	12	20	2,3	20	60	on request
K2114.9410201	AP	without plastic cap, without locknut	10	M20x1,5	20	71	50	30	18	6	12	20	2,8	20	60	on request
K2114.9412201	AP	without plastic cap, without locknut	12	M20x1,5	20	71	50	30	18	6	12	20	3	20	60	on request

Cam-action indexing plungers with thread lock, with cap, without nut, Form CP

More information

Drawings

Cam-action indexing plungers with thread lock, with cap, without nut, Form CP

Item selection/filter

Order No.	Form	Form definition	Component colour	Surface finish body	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K2114.960410	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.960510	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.960610	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.9604101	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.9605101	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.9606101	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.960512	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.960612	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.960812	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.9605121	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.9606121	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.9608121	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.960616	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.960816	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.961016	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.9606161	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.9608161	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.9610161	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.960820	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.961020	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.961220	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.9608201	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.9610201	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.9612201	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.9604102	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.9605102	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.9606102	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.96041012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.96051012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.96061012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.9606122	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.9608122	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.9605122	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96051212	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96061212	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.96081212	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.9606162	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.9608162	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.9610162	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96061612	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.96101612	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96081612	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.9608202	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.9610202	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.9612202	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.96082012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.96102012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.96122012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.96041016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.96051016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.96061016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.960410116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.960510116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.960610116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.96051216	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96061216	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.96081216	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.960512116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.960612116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.960812116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.96061616	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.96081616	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.96101616	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.960616116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.960816116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.961016116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96082016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.96102016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.96122016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.960820116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.961020116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.961220116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.96041084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.96051084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.96061084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.960410184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.960510184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.960610184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.96051284	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96061284	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.96081284	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.960512184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.960612184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.960812184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.96061684	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.96081684	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.96101684	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.960616184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.960816184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.961016184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96082084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.96102084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.96122084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.960820184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.961020184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.961220184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.96041086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.96051086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.96061086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.960410186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.960510186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.960610186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.96051286	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96061286	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.96081286	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.960512186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.960612186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.960812186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.96061686	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.96081686	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.96101686	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.960616186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.960816186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.961016186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96082086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.96102086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.96122086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.960820186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.961020186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.961220186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.96041087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.96051087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.96061087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.960410187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.960510187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.960610187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.96051287	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96061287	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.96081287	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.960512187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.960612187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.960812187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.96061687	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.96081687	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.96101687	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.960616187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.960816187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.961016187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96082087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.96102087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.96122087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.960820187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.961020187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.961220187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.96041088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.96051088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.96061088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.960410188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
K2114.960510188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
K2114.960610188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
K2114.96051288	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.96061288	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.96081288	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.960512188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
K2114.960612188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
K2114.960812188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
K2114.96061688	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.96081688	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.96101688	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.960616188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
K2114.960816188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
K2114.961016188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
K2114.96082088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.96102088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.96122088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
K2114.960820188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
K2114.961020188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
K2114.961220188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
