Rod ends with plain bearing internal thread, stainless steel,...

go back

Products
- Operating parts | standard elements
  - Joints
    - Rod ends with plain bearing internal thread, stainless steel, DIN ISO 12240-1, maintenance-free

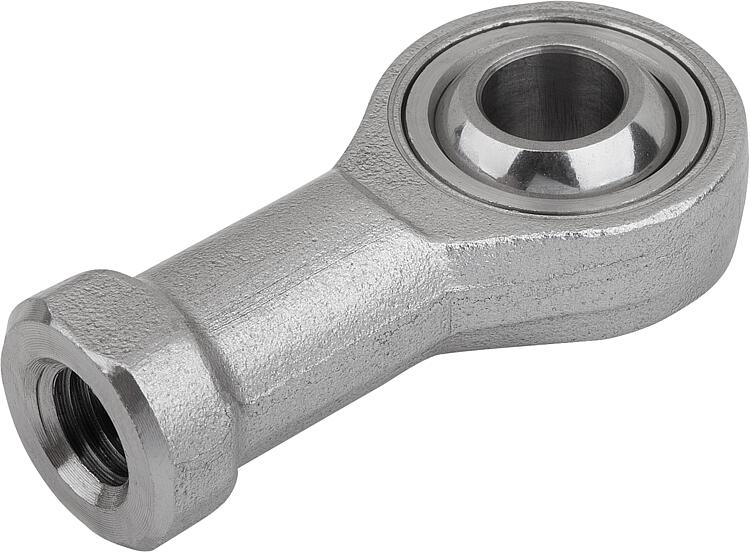

Item description/product images

DescriptionMaterial:

Housing forged 1.4057 stainless steel.
Ball joint 1.4034 hardened and ground.
Bearing shell 1.4571 stainless steel.

Version:Polished.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 series KJ.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2082 Rod ends with plain bearing internal thread, stainless steel, DIN ISO 12240-1, maintenance-free

265 kB

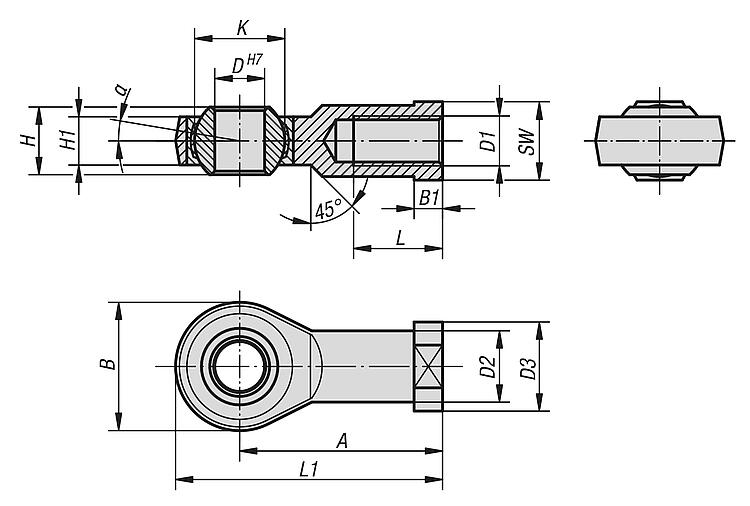

Drawings

Item selection/filter

Order No.	Version 2	A	B	B1	D	D1	D2	D3	H	H1	K	L	L1	α	SW	Dynamic base loads kN	Static base loads kN	Price
K2082.05	RH thread	27	18	4	5	M5x0,8	8,5	11	8	6	11,11	10	36	13	9	5,7	6	on request
K2082.06	RH thread	30	20	5	6	M6x1,0	10	13	9	6,75	12,7	12	40	13	11	7,2	7,65	on request
K2082.08	RH thread	36	24	5	8	M8x1,25	12,5	16	12	9	15,875	16	48	14	14	11,6	12,9	on request
K2082.10	RH thread	43	28	6,5	10	M10x1,5	15	19	14	10,5	19,05	20	57	13	17	14,5	18	on request
K2082.10125	RH thread	43	28	6,5	10	M10x1,25	15	19	14	10,5	19,05	20	57	13	17	14,5	18	on request
K2082.12	RH thread	50	32	6,5	12	M12x1,75	17,5	22	16	12	22,225	22	66	13	19	17	24	on request
K2082.12125	RH thread	50	32	6,5	12	M12x1,25	17,5	22	16	12	22,225	22	66	13	19	17	24	on request
K2082.16	RH thread	64	42	8	16	M16x2,0	22	27	21	15	28,575	28	85	15	22	28,5	39	on request
K2082.1615	RH thread	64	42	8	16	M16x1,5	22	27	21	15	28,575	28	85	15	22	28,5	39	on request
K2082.20	RH thread	77	50	10	20	M20x1,5	27,5	34	25	18	34,925	33	102	14	30	42,5	57	on request
K2082.22	RH thread	84	54	12	22	M22x1,5	30	38	28	20	38,10	37	111	15	32	57	68	on request
K2082.25	RH thread	91	60	12	25	M24x2,0	33,5	42	31	22	42,86	42	124	15	36	68	85	on request
K2082.30	RH thread	110	70	15	30	M30x2,0	40	50	37	25	50,8	51	145	17	41	88	114	on request
K2082.051	LH thread	27	18	4	5	M5x0,8	8,5	11	8	6	11,11	10	36	13	9	5,7	6	on request
K2082.061	LH thread	30	20	5	6	M6x1,0	10	13	9	6,75	12,7	12	40	13	11	7,2	7,65	on request
K2082.081	LH thread	36	24	5	8	M8x1,25	12,5	16	12	9	15,875	16	48	14	14	11,6	12,9	on request
K2082.101	LH thread	43	28	6,5	10	M10x1,5	15	19	14	10,5	19,05	20	57	13	17	14,5	18	on request
K2082.101251	LH thread	43	28	6,5	10	M10x1,25	15	19	14	10,5	19,05	20	57	13	17	14,5	18	on request
K2082.121	LH thread	50	32	6,5	12	M12x1,75	17,5	22	16	12	22,225	22	66	13	19	17	24	on request
K2082.121251	LH thread	50	32	6,5	12	M12x1,25	17,5	22	16	12	22,225	22	66	13	19	17	24	on request
K2082.161	LH thread	64	42	8	16	M16x2,0	22	27	21	15	28,575	28	85	15	22	28,5	39	on request
K2082.16151	LH thread	64	42	8	16	M16x1,5	22	27	21	15	28,575	28	85	15	22	28,5	39	on request
K2082.201	LH thread	77	50	10	20	M20x1,5	27,5	34	25	18	34,925	33	102	14	30	42,5	57	on request
K2082.221	LH thread	84	54	12	22	M22x1,5	30	38	28	20	38,10	37	111	15	32	57	68	on request
K2082.251	LH thread	91	60	12	25	M24x2,0	33,5	42	31	22	42,86	42	124	15	36	68	85	on request
K2082.301	LH thread	110	70	15	30	M30x2,0	40	50	37	25	50,8	51	145	17	41	88	114	on request
