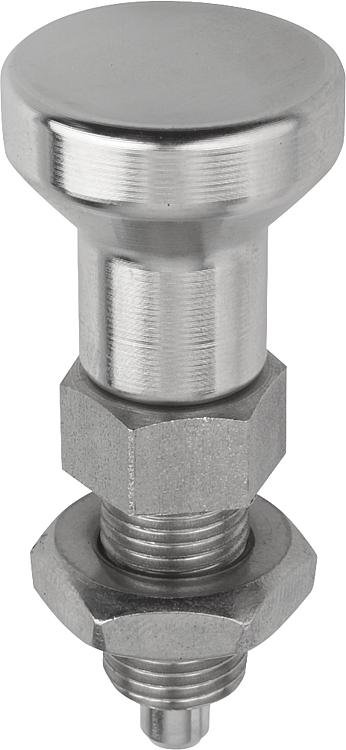

      - Indexing plungers, stainless steel with stainless steel mushroom grip
        Indexing plungers, stainless steel with stainless steel mushroom grip and locknut

Item description/product images

DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction.

A new indexed position can be only be moved to after the pin has been manually retracted. Form C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

The materials used enable a wide range of applications.
Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements.
Material:

Stainless steel A2 version:
Threaded sleeve and mushroom grip 1.4305.
hardened indexing pin 1.4034.
Non-hardened indexing pin 1.4305.
Spring 1.4310.

Stainless steel A4 version:
Threaded sleeve, mushroom grip and indexing pin 1.4404.
Spring 1.4401 or 1.4571.

Version:Stainless steel A2 version:
threaded sleeve bright.
Mushroom grip bright.
Indexing pin hardened or not hardened, ground and bright.

Stainless steel A4 version:
threaded sleeve bright.
Mushroom grip bright or abrasive blasted.
Indexing pin ground, chemically nickel-plated or bright.On request:Special versions.Accessory:Spacer rings K0665.
Fastening sets for thin-walled parts K2146.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0632_B Indexing plungers, stainless steel with stainless steel mushroom grip and locknut

172 kB

Drawings

Item selection/filter

Order No.	Form	Main material	Steel code	Mushroom grip	locating pin	D	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K0632.002903	B	stainless steel	1.4034	-	hardened	3	M6x0,75	14	34,5	12	5	10	3,5	8	10	0,8	4,5	10	on request
K0632.002004	B	stainless steel	1.4034	-	hardened	4	M8x1	18	43	15	6	13	4	10	13	1	6	12	on request
K0632.002105	B	stainless steel	1.4034	-	hardened	5	M10x1	21	50	17	7	15	5	13	17	1,3	5	12	on request
K0632.002206	B	stainless steel	1.4034	-	hardened	6	M12x1,5	25	59	20	8	17	6	14	19	1,8	6	14	on request
K0632.002308	B	stainless steel	1.4034	-	hardened	8	M16x1,5	33	77	26	10	23	8	19	24	2,3	15	35	on request
K0632.002410	B	stainless steel	1.4034	-	hardened	10	M20x1,5	33	83	28	12	25	10	22	30	2,8	15	34	on request
K0632.002412	B	stainless steel	1.4034	-	hardened	12	M20x1,5	33	87	28	14	25	12	22	30	2,8	15	39	on request
K0632.002516	B	stainless steel	1.4034	-	hardened	16	M24x2	40	106	32	18	28	16	27	36	3,2	20	46	on request
K0632.112903	B	stainless steel	1.4305	-	not hardened	3	M6x0,75	14	34,5	12	5	10	3,5	8	10	0,8	4,5	10	on request
K0632.112004	B	stainless steel	1.4305	-	not hardened	4	M8x1	18	43	15	6	13	4	10	13	1	6	12	on request
K0632.112105	B	stainless steel	1.4305	-	not hardened	5	M10x1	21	50	17	7	15	5	13	17	1,3	5	12	on request
K0632.112206	B	stainless steel	1.4305	-	not hardened	6	M12x1,5	25	59	20	8	17	6	14	19	1,8	6	14	on request
K0632.112308	B	stainless steel	1.4305	-	not hardened	8	M16x1,5	33	77	26	10	23	8	19	24	2,3	15	35	on request
K0632.112410	B	stainless steel	1.4305	-	not hardened	10	M20x1,5	33	83	28	12	25	10	22	30	2,8	15	34	on request
K0632.112412	B	stainless steel	1.4305	-	not hardened	12	M20x1,5	33	87	28	14	25	12	22	30	2,8	15	39	on request
K0632.112516	B	stainless steel	1.4305	-	not hardened	16	M24x2	40	106	32	18	28	16	27	36	3,2	20	46	on request
K0632.062903	B	stainless steel	1.4404	bright	nickel-plated	3	M6x0,75	14	34,5	12	5	10	3,5	8	10	0,8	3	6,5	on request
K0632.062004	B	stainless steel	1.4404	bright	nickel-plated	4	M8x1	18	43	15	6	13	4	10	13	1	7	15,5	on request
K0632.062105	B	stainless steel	1.4404	bright	nickel-plated	5	M10x1	21	50	17	7	15	5	13	17	1,3	4	12,5	on request
K0632.062206	B	stainless steel	1.4404	bright	nickel-plated	6	M12x1,5	25	59	20	8	17	6	14	19	1,8	7	14,5	on request
K0632.062308	B	stainless steel	1.4404	bright	nickel-plated	8	M16x1,5	33	77	26	10	23	8	19	24	2,3	15	35	on request
K0632.062410	B	stainless steel	1.4404	bright	nickel-plated	10	M20x1,5	33	83	28	12	25	10	22	30	2,8	15	30	on request
K0632.062412	B	stainless steel	1.4404	bright	nickel-plated	12	M20x1,5	33	87	28	14	25	12	22	30	2,8	15	39	on request
K0632.062516	B	stainless steel	1.4404	bright	nickel-plated	16	M24x2	40	106	32	18	28	16	27	36	3,2	20	40	on request
K0632.172903	B	stainless steel	1.4404	bright	bright	3	M6x0,75	14	34,5	12	5	10	3,5	8	10	0,8	3	6,5	on request
K0632.172004	B	stainless steel	1.4404	bright	bright	4	M8x1	18	43	15	6	13	4	10	13	1	7	15,5	on request
K0632.172105	B	stainless steel	1.4404	bright	bright	5	M10x1	21	50	17	7	15	5	13	17	1,3	4	12,5	on request
K0632.172206	B	stainless steel	1.4404	bright	bright	6	M12x1,5	25	59	20	8	17	6	14	19	1,8	7	14,5	on request
K0632.172308	B	stainless steel	1.4404	bright	bright	8	M16x1,5	33	77	26	10	23	8	19	24	2,3	15	35	on request
K0632.172410	B	stainless steel	1.4404	bright	bright	10	M20x1,5	33	83	28	12	25	10	22	30	2,8	15	30	on request
K0632.172412	B	stainless steel	1.4404	bright	bright	12	M20x1,5	33	87	28	14	25	12	22	30	2,8	15	39	on request
K0632.172516	B	stainless steel	1.4404	bright	bright	16	M24x2	40	106	32	18	28	16	27	36	3,2	20	40	on request
K0632.0629031	B	stainless steel	1.4404	blasted	nickel-plated	3	M6x0,75	14	34,5	12	5	10	3,5	8	10	0,8	3	6,5	on request
K0632.0620041	B	stainless steel	1.4404	blasted	nickel-plated	4	M8x1	18	43	15	6	13	4	10	13	1	7	15,5	on request
K0632.0621051	B	stainless steel	1.4404	blasted	nickel-plated	5	M10x1	21	50	17	7	15	5	13	17	1,3	4	12,5	on request
K0632.0622061	B	stainless steel	1.4404	blasted	nickel-plated	6	M12x1,5	25	59	20	8	17	6	14	19	1,8	7	14,5	on request
K0632.0623081	B	stainless steel	1.4404	blasted	nickel-plated	8	M16x1,5	33	77	26	10	23	8	19	24	2,3	15	35	on request
K0632.0624101	B	stainless steel	1.4404	blasted	nickel-plated	10	M20x1,5	33	83	28	12	25	10	22	30	2,8	15	30	on request
K0632.0624121	B	stainless steel	1.4404	blasted	nickel-plated	12	M20x1,5	33	87	28	14	25	12	22	30	2,8	15	39	on request
K0632.0625161	B	stainless steel	1.4404	blasted	nickel-plated	16	M24x2	40	106	32	18	28	16	27	36	3,2	20	40	on request
K0632.1729031	B	stainless steel	1.4404	blasted	bright	3	M6x0,75	14	34,5	12	5	10	3,5	8	10	0,8	3	6,5	on request
K0632.1720041	B	stainless steel	1.4404	blasted	bright	4	M8x1	18	43	15	6	13	4	10	13	1	7	15,5	on request
K0632.1721051	B	stainless steel	1.4404	blasted	bright	5	M10x1	21	50	17	7	15	5	13	17	1,3	4	12,5	on request
K0632.1722061	B	stainless steel	1.4404	blasted	bright	6	M12x1,5	25	59	20	8	17	6	14	19	1,8	7	14,5	on request
K0632.1723081	B	stainless steel	1.4404	blasted	bright	8	M16x1,5	33	77	26	10	23	8	19	24	2,3	15	35	on request
K0632.1724101	B	stainless steel	1.4404	blasted	bright	10	M20x1,5	33	83	28	12	25	10	22	30	2,8	15	30	on request
K0632.1724121	B	stainless steel	1.4404	blasted	bright	12	M20x1,5	33	87	28	14	25	12	22	30	2,8	15	39	on request
K0632.1725161	B	stainless steel	1.4404	blasted	bright	16	M24x2	40	106	32	18	28	16	27	36	3,2	20	40	on request
