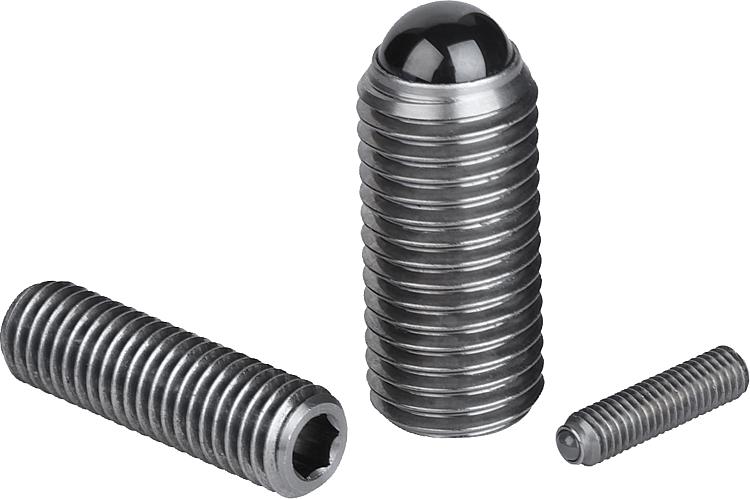

K0610Spring plungers with hexagon socket and ceramic ball, stainless... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel version A1:
Threaded sleeve 1.4305.
Spring 1.4310.
Ball ceramic Si3N4
Stainless steel version A4:
Threaded sleeve 1.4404.
Spring 1.4401.
Ball ceramic Si3N4. Version:Bright.Note:Silicon nitride Si3N4 is characterised in particular by a combination of outstanding material properties. These include high ductility and strength, excellent wear properties and good chemical resistance.
The materials used enable a wide range of applications.
Spring plungers made from A4 stainless steel are recommended for applications that require with very high corrosion resistance. Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | Steel
code | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | carrier form | CAD | Acc. | Price | Order |
|---|
| K0610.03 | M3 | 1.4305 | 1,5 | 0,4 | 9 | 1,5 | 1,5 | 3 | hexagon socket |  | | on request | | | K0610.031 | M3 | 1.4404 | 1,5 | 0,4 | 9 | 1,5 | 1,5 | 3 | hexagon socket | | | on request | | | K0610.04 | M4 | 1.4305 | 2,5 | 0,8 | 10 | 2 | 4 | 10 | hexagon socket | | | on request | | | K0610.041 | M4 | 1.4404 | 2,5 | 0,8 | 10 | 2 | 4 | 10 | hexagon socket | | | on request | | | K0610.05 | M5 | 1.4305 | 3 | 0,9 | 14 | 2,5 | 6 | 11 | hexagon socket | | | on request | | | K0610.051 | M5 | 1.4404 | 3 | 0,9 | 14 | 2,5 | 6 | 11 | hexagon socket | | | on request | | | K0610.06 | M6 | 1.4305 | 3,5 | 1 | 15 | 3 | 9 | 13 | hexagon socket | | | on request | | | K0610.061 | M6 | 1.4404 | 3,5 | 1 | 15 | 3 | 9 | 13 | hexagon socket | | | on request | | | K0610.08 | M8 | 1.4305 | 5 | 1,5 | 18 | 4 | 15 | 30 | hexagon socket | | | on request | | | K0610.081 | M8 | 1.4404 | 5 | 1,5 | 18 | 4 | 15 | 30 | hexagon socket | | | on request | | | K0610.10 | M10 | 1.4305 | 6 | 2 | 23 | 5 | 20 | 35 | hexagon socket | | | on request | | | K0610.101 | M10 | 1.4404 | 6 | 2 | 23 | 5 | 20 | 35 | hexagon socket | | | on request | | | K0610.12 | M12 | 1.4305 | 8 | 2,5 | 26 | 6 | 30 | 55 | hexagon socket | | | on request | | | K0610.121 | M12 | 1.4404 | 8 | 2,5 | 26 | 6 | 30 | 55 | hexagon socket | | | on request | | | K0610.16 | M16 | 1.4305 | 10 | 3,5 | 33 | 8 | 65 | 125 | hexagon socket | | | on request | | | K0610.161 | M16 | 1.4404 | 10 | 3,5 | 33 | 8 | 65 | 125 | hexagon socket | | | on request | |
