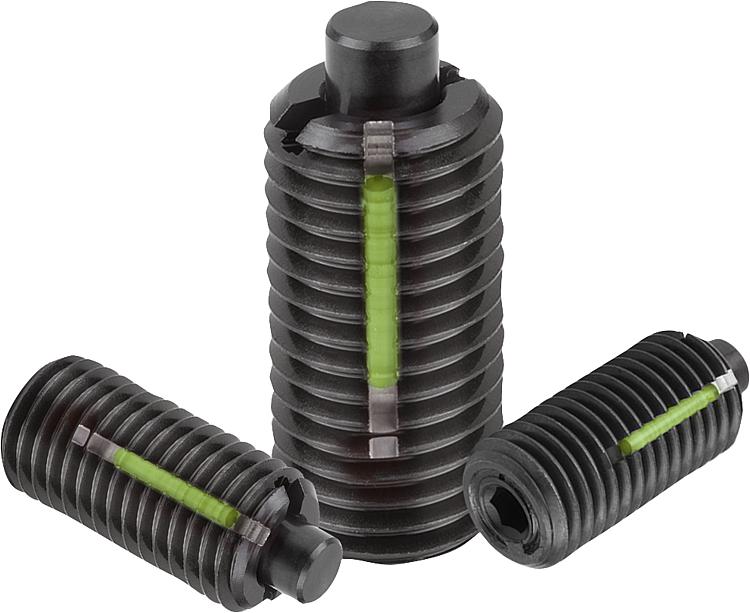

      - Spring plungers with hex socket and flat thrust pin, steel, with thread lock

Item description/product images

DescriptionMaterial:Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.

Thread lock nylon.Version:Black oxidised.
Thrust pin hardened.Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.

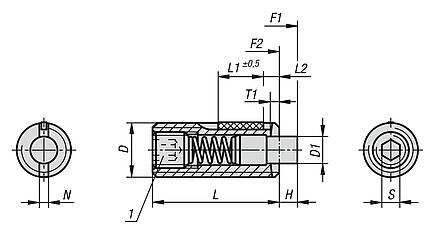

The thrust pin is actuated in the axial direction.Drawing reference:

L2 = ca. two full threads

1) grub screw glued-in

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1371 Spring plungers with hex socket and flat thrust pin, steel, with thread lock

271 kB

Drawings

Item selection/filter

Order No.	D	D1	H	L	L1	T1	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque approx. Nm	Order No. Assembly key	Price
K1371.05	M5	2,4	2,3	18	7	0,8	0,8	1,5	6	20	0,12	0,08	K0317.905	on request
K1371.06	M6	2,7	2,5	20	7	1	1	2	7	20	0,45	0,22	K0317.906	on request
K1371.08	M8	3,5	3	22	8	1,4	1,2	2,5	9	35	1,05	0,37	K0317.908	on request
K1371.10	M10	4	3	22	9	1,4	1,6	3	9	35	1,3	0,6	K0317.910	on request
K1371.12	M12	6	4	28	10	2	2	4	12	55	2	1,3	K0317.912	on request
K1371.16	M16	7,5	5	32	14	2,5	2,5	5	45	100	3,9	3	K0317.916	on request
