K2241Grippers, tool steel, rectangular with counterbore |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Grippers and inserts are perfect for use in clamping arms, gripper systems, clamping fixtures, clamping jaws and jaw plates. Grippers can be used to transfer the highest torques and above-average clamping forces, even with hard materials and surface irregularities.Material:Tool steel.Version:Hardened, black oxidised.Accessory:K0929 Side clamp.
K0930 Side clamp.
K0931 Side clamp with rest pads.
K1159 Socket head screws, thread up to head DIN 912.
K1160 Socket head screws, low profile head DIN 6912.
K0869 Socket head screws, DIN EN ISO 4762 extended, steel or stainless steel.Drawing reference:Form A: serrated

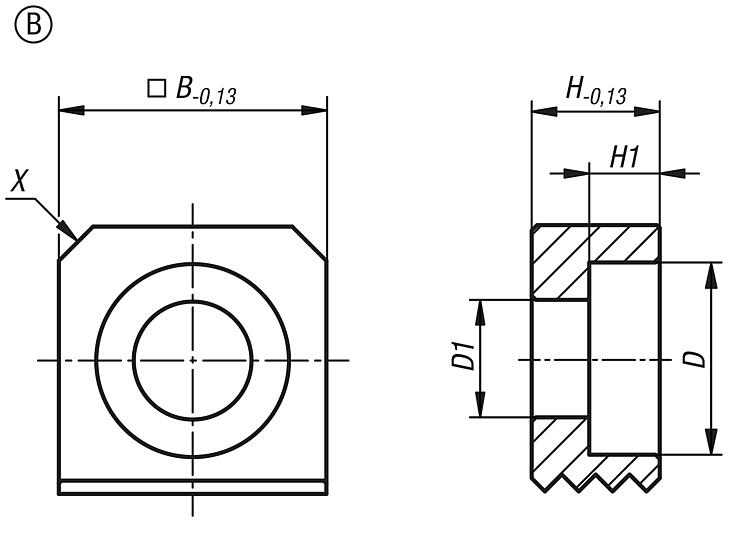

Form B: wedge shaped DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

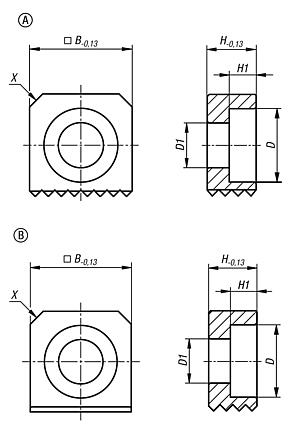

Drawings (total overview) |
[-de-] Grippers, Werkzeugstahl, viereckig
mit Senkbohrung Form A |
More information |
Order No.
| Form | Version 1 | B | H | H1 | D | D1 | for
screws
| Serration | X | CAD | Acc. | Price | Order |
|---|
| K2241.12061 | A | serrated | 12 | 6 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° |  | | on request | | | K2241.12101 | A | serrated | 12 | 10 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | on request | | | K2241.12121 | A | serrated | 12 | 12 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | on request | | | K2241.16061 | A | serrated | 16 | 6 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | on request | | | K2241.16101 | A | serrated | 16 | 10 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | on request | | | K2241.16121 | A | serrated | 16 | 12 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | on request | | | K2241.20061 | A | serrated | 20 | 6 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | on request | | | K2241.20101 | A | serrated | 20 | 10 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | on request | | | K2241.20121 | A | serrated | 20 | 12 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | on request | | | K2241.25101 | A | serrated | 25 | 10 | 6,6 | 18 | 11 | M10 | fine | 3,2x45° | | | on request | | | K2241.25121 | A | serrated | 25 | 12 | 6,6 | 18 | 11 | M10 | fine | 3,2x45° | | | on request | |
|
[-de-] Grippers, Werkzeugstahl, viereckig
mit Senkbohrung Form B |
More information |
Order No.
| Form | Version 1 | B | H | H1 | D | D1 | for
screws
| Serration | X | CAD | Acc. | Price | Order |
|---|
| K2241.12062 | B | wedge-shaped | 12 | 6 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | on request | | | K2241.12102 | B | wedge-shaped | 12 | 10 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | on request | | | K2241.12122 | B | wedge-shaped | 12 | 12 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | on request | | | K2241.16062 | B | wedge-shaped | 16 | 6 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | on request | | | K2241.16102 | B | wedge-shaped | 16 | 10 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | on request | | | K2241.16122 | B | wedge-shaped | 16 | 12 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | on request | | | K2241.20062 | B | wedge-shaped | 20 | 6 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | on request | | | K2241.20102 | B | wedge-shaped | 20 | 10 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | on request | | | K2241.20122 | B | wedge-shaped | 20 | 12 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | on request | | | K2241.25102 | B | wedge-shaped | 25 | 10 | 6,6 | 18 | 11 | M10 | fine | 3,2x45° | | | on request | | | K2241.25122 | B | wedge-shaped | 25 | 12 | 6,6 | 18 | 11 | M10 | fine | 3,2x45° | | | on request | |
|
