K0204Pull handles, oval aluminium, detachable |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Pull handle, oval aluminium EN AW-6060.
Locating pin steel.
Blanking disc steel.Version:Pull handle black powder-coated.
Locating pin and blanking disc black oxidised.Note:The pull handles are mounted on an object by a push-fit system.
Dismantling is carried out when no load is applied.Application:Insert the pull handle into the opening until the grip makes contact with the blanking disc.
Lock by holding the handle parallel and pulling up.
The grip can only be subject to vertical loads.
To release, follow the previous instructions in reverse.Assembly:An object must be prepared before the blanking disc can be mounted.

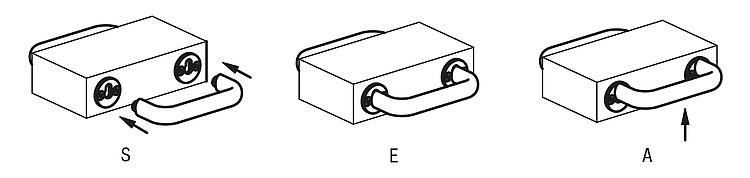

See mounting instructions drawing.Drawing reference:1) Position disengaged
2) Position engaged
S = insert
E = engage
A = lift DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Other items in this category |
|
| Availability Here you can check item's availability. |
|
