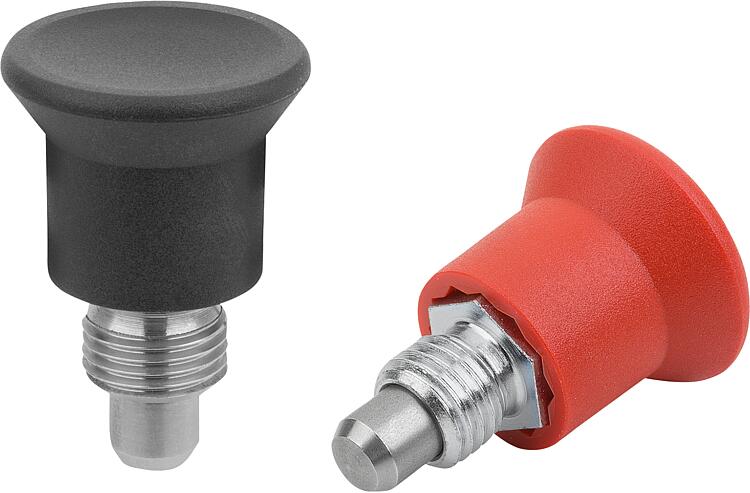

      - Indexing plunger mini steel or stainless steel with plastic mushroom grip

Item description/product images

Show/filter all items

DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces.
Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction.

Indexing plungers mini enable a wide range of applications, especially in small installation spaces. They are a space-saving and cost-effective alternative to the familiar standard designs.Material:

Steel version:
Threaded sleeve machining steel.
Indexing pin stainless steel 1.4305.

Stainless steel version:
Threaded sleeve and indexing pin stainless steel 1.4305.

Compression spring stainless steel 1.4568.
Mushroom grip thermoplastic.

Version:Steel version:
Threaded sleeve blue passivated.
Indexing pin bright.

Stainless steel version:

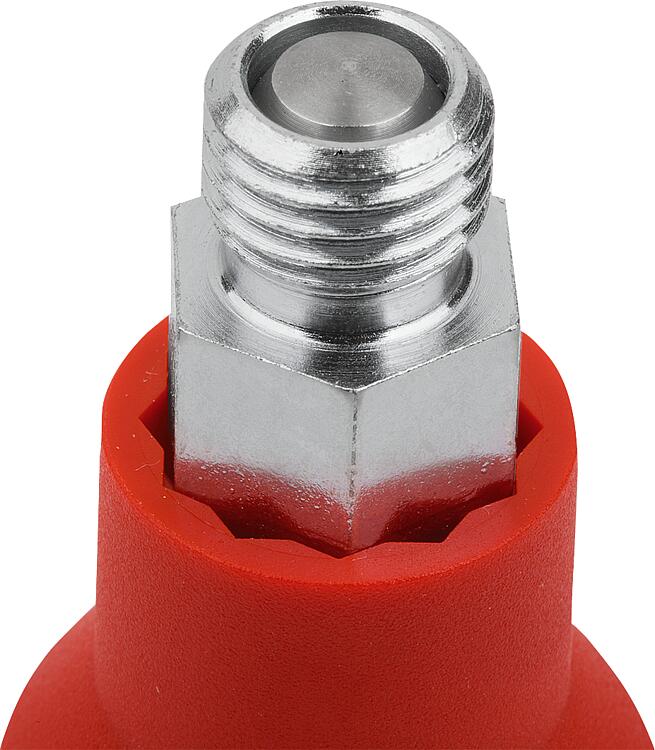

Threaded sleeve and indexing pin bright.Type of operation:In Form C, the mushroom grip can be rotated by 30° to hold the indexing pin in pulled position.Assembly:The indexing pin must be pulled out for installation with an open-end spanner.Accessory:Spacer rings K0665.
Hexagon nuts, low profile DIN 439 / ISO 4035, K0700.

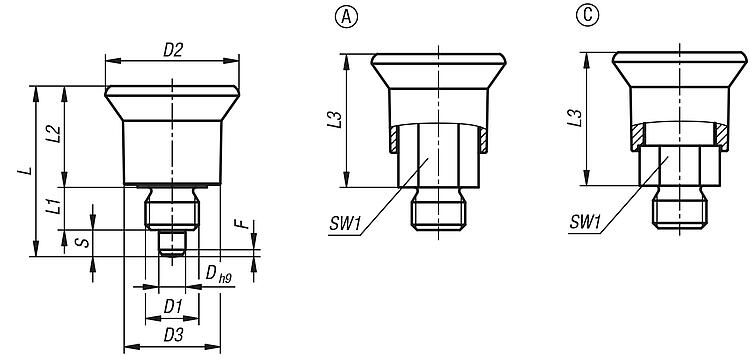

Positioning bushes for indexing plunger K1290.Drawing reference:

Form A: non-lockout type, without locknut
Form C: lockout type, without locknut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2000 Indexing plunger mini steel or stainless steel with plastic mushroom grip

489 kB

Drawings (total overview)

Indexing plunger mini steel or stainless steel with plastic mushroom grip

More information

Drawings

Item selection/filter

Order No.	Form	Main material	Surface finish body	Component colour	D	D1	D2	D3	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K2000.1004081	A	steel	blue-passivated	black grey RAL 7021	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.1005081	A	steel	blue-passivated	black grey RAL 7021	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.1105101	A	steel	blue-passivated	black grey RAL 7021	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.1106101	A	steel	blue-passivated	black grey RAL 7021	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.1206121	A	steel	blue-passivated	black grey RAL 7021	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.1208121	A	steel	blue-passivated	black grey RAL 7021	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.1308161	A	steel	blue-passivated	black grey RAL 7021	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.1310161	A	steel	blue-passivated	black grey RAL 7021	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.100408184	A	steel	blue-passivated	traffic red RAL 3020	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.100508184	A	steel	blue-passivated	traffic red RAL 3020	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.110510184	A	steel	blue-passivated	traffic red RAL 3020	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.110610184	A	steel	blue-passivated	traffic red RAL 3020	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.120612184	A	steel	blue-passivated	traffic red RAL 3020	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.120812184	A	steel	blue-passivated	traffic red RAL 3020	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.130816184	A	steel	blue-passivated	traffic red RAL 3020	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.131016184	A	steel	blue-passivated	traffic red RAL 3020	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.11004081	A	stainless steel	bright	black grey RAL 7021	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.11005081	A	stainless steel	bright	black grey RAL 7021	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.11105101	A	stainless steel	bright	black grey RAL 7021	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.11106101	A	stainless steel	bright	black grey RAL 7021	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.11206121	A	stainless steel	bright	black grey RAL 7021	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.11208121	A	stainless steel	bright	black grey RAL 7021	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.11308161	A	stainless steel	bright	black grey RAL 7021	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.11310161	A	stainless steel	bright	black grey RAL 7021	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.1100408184	A	stainless steel	bright	traffic red RAL 3020	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.1100508184	A	stainless steel	bright	traffic red RAL 3020	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.1110510184	A	stainless steel	bright	traffic red RAL 3020	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.1110610184	A	stainless steel	bright	traffic red RAL 3020	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.1120612184	A	stainless steel	bright	traffic red RAL 3020	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.1131016184	A	stainless steel	bright	traffic red RAL 3020	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.1120812184	A	stainless steel	bright	traffic red RAL 3020	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.1130816184	A	stainless steel	bright	traffic red RAL 3020	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request

Indexing plunger mini, steel or stainless steel with plastic mushroom grip and locking slot

More information

Drawings

Indexing plunger mini, steel or stainless steel with plastic mushroom grip and locking slot

Item selection/filter

Order No.	Form	Main material	Surface finish body	Component colour	D	D1	D2	D3	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K2000.3004081	C	steel	blue-passivated	black grey RAL 7021	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.3005081	C	steel	blue-passivated	black grey RAL 7021	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.3105101	C	steel	blue-passivated	black grey RAL 7021	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.3106101	C	steel	blue-passivated	black grey RAL 7021	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.3206121	C	steel	blue-passivated	black grey RAL 7021	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.3208121	C	steel	blue-passivated	black grey RAL 7021	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.3308161	C	steel	blue-passivated	black grey RAL 7021	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.3310161	C	steel	blue-passivated	black grey RAL 7021	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.300408184	C	steel	blue-passivated	traffic red RAL 3020	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.300508184	C	steel	blue-passivated	traffic red RAL 3020	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.310510184	C	steel	blue-passivated	traffic red RAL 3020	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.310610184	C	steel	blue-passivated	traffic red RAL 3020	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.320612184	C	steel	blue-passivated	traffic red RAL 3020	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.320812184	C	steel	blue-passivated	traffic red RAL 3020	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.330816184	C	steel	blue-passivated	traffic red RAL 3020	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.331016184	C	steel	blue-passivated	traffic red RAL 3020	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.13004081	C	stainless steel	bright	black grey RAL 7021	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.13005081	C	stainless steel	bright	black grey RAL 7021	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.13105101	C	stainless steel	bright	black grey RAL 7021	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.13106101	C	stainless steel	bright	black grey RAL 7021	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.13206121	C	stainless steel	bright	black grey RAL 7021	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.13208121	C	stainless steel	bright	black grey RAL 7021	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.13308161	C	stainless steel	bright	black grey RAL 7021	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.13310161	C	stainless steel	bright	black grey RAL 7021	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
K2000.1300408184	C	stainless steel	bright	traffic red RAL 3020	4	M8x1	21	15	26,5	6	16,5	21,5	4	10	1	3	16	on request
K2000.1300508184	C	stainless steel	bright	traffic red RAL 3020	5	M8x1	21	15	27,5	6	16,5	21,5	5	10	1,3	3	16	on request
K2000.1310510184	C	stainless steel	bright	traffic red RAL 3020	5	M10x1	25	18	32	8	19	25	5	13	1,3	4,5	12,5	on request
K2000.1310610184	C	stainless steel	bright	traffic red RAL 3020	6	M10x1	25	18	33	8	19	25	6	13	1,8	4,5	12,5	on request
K2000.1320612184	C	stainless steel	bright	traffic red RAL 3020	6	M12x1,5	29	20	39	10	23	31	6	14	1,8	5	19	on request
K2000.1320812184	C	stainless steel	bright	traffic red RAL 3020	8	M12x1,5	29	20	41	10	23	31	8	14	2,3	5	19	on request
K2000.1330816184	C	stainless steel	bright	traffic red RAL 3020	8	M16x1,5	33	23	46	12	26	36	8	17	2,3	12	38	on request
K2000.1331016184	C	stainless steel	bright	traffic red RAL 3020	10	M16x1,5	33	23	48	12	26	36	10	17	2,8	12	38	on request
